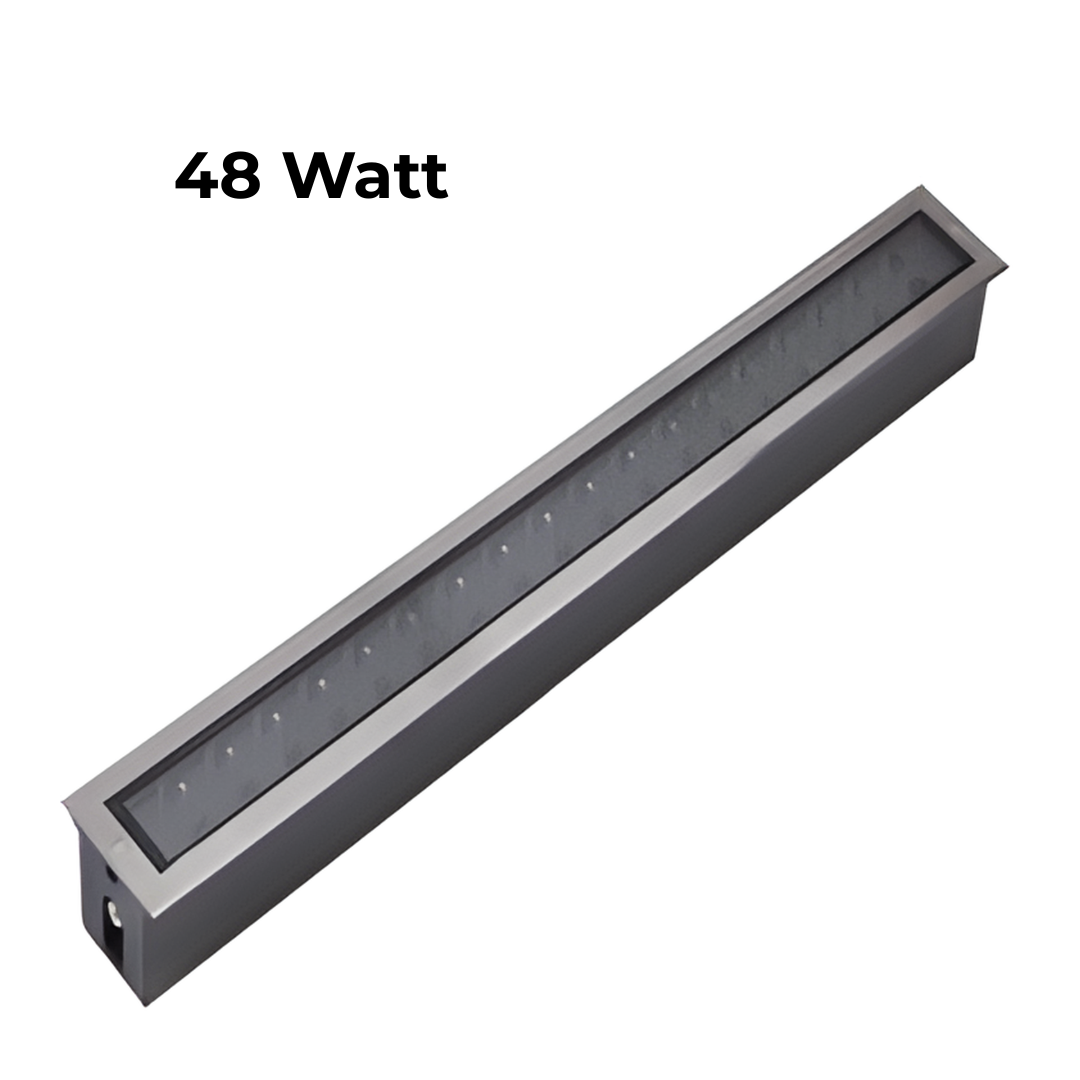

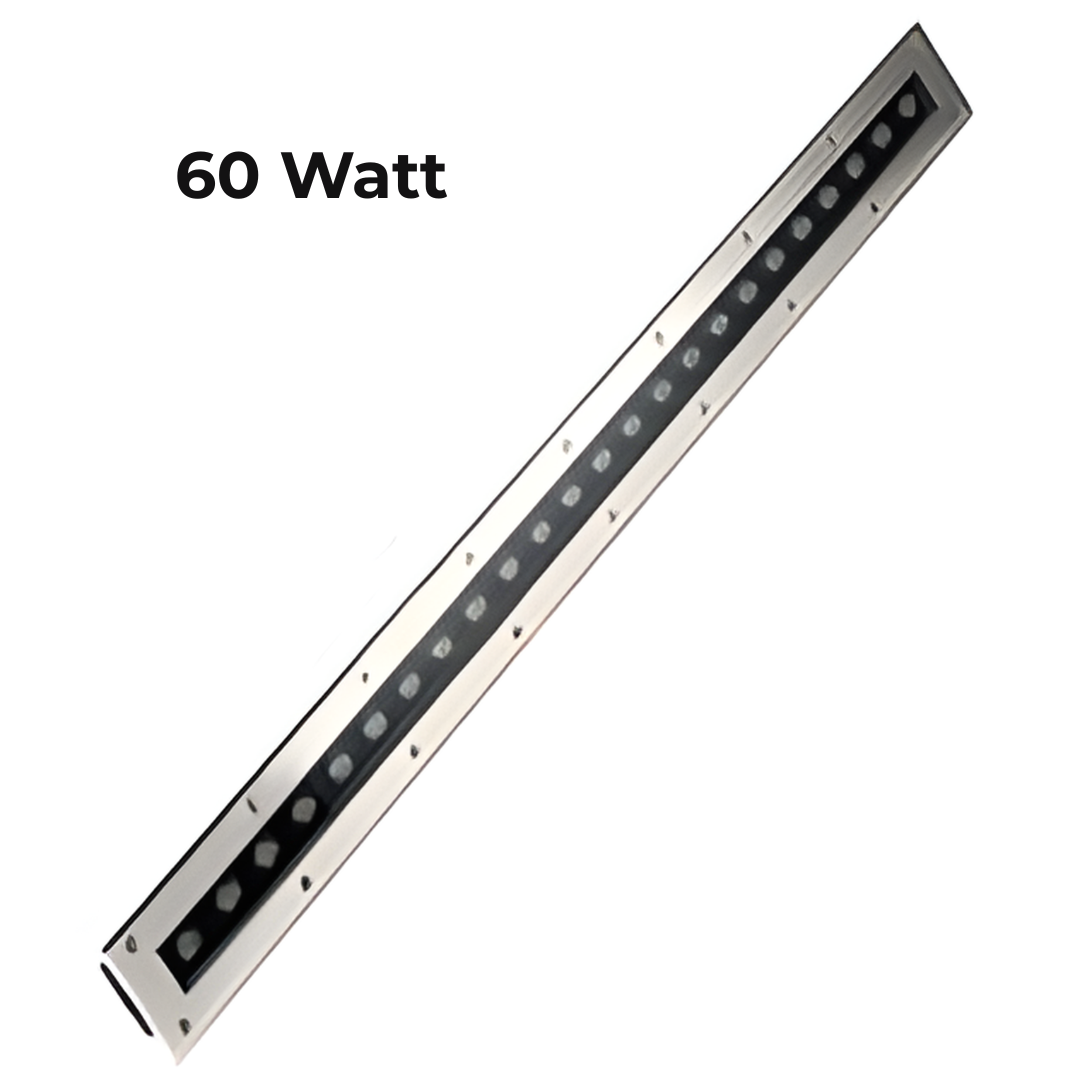

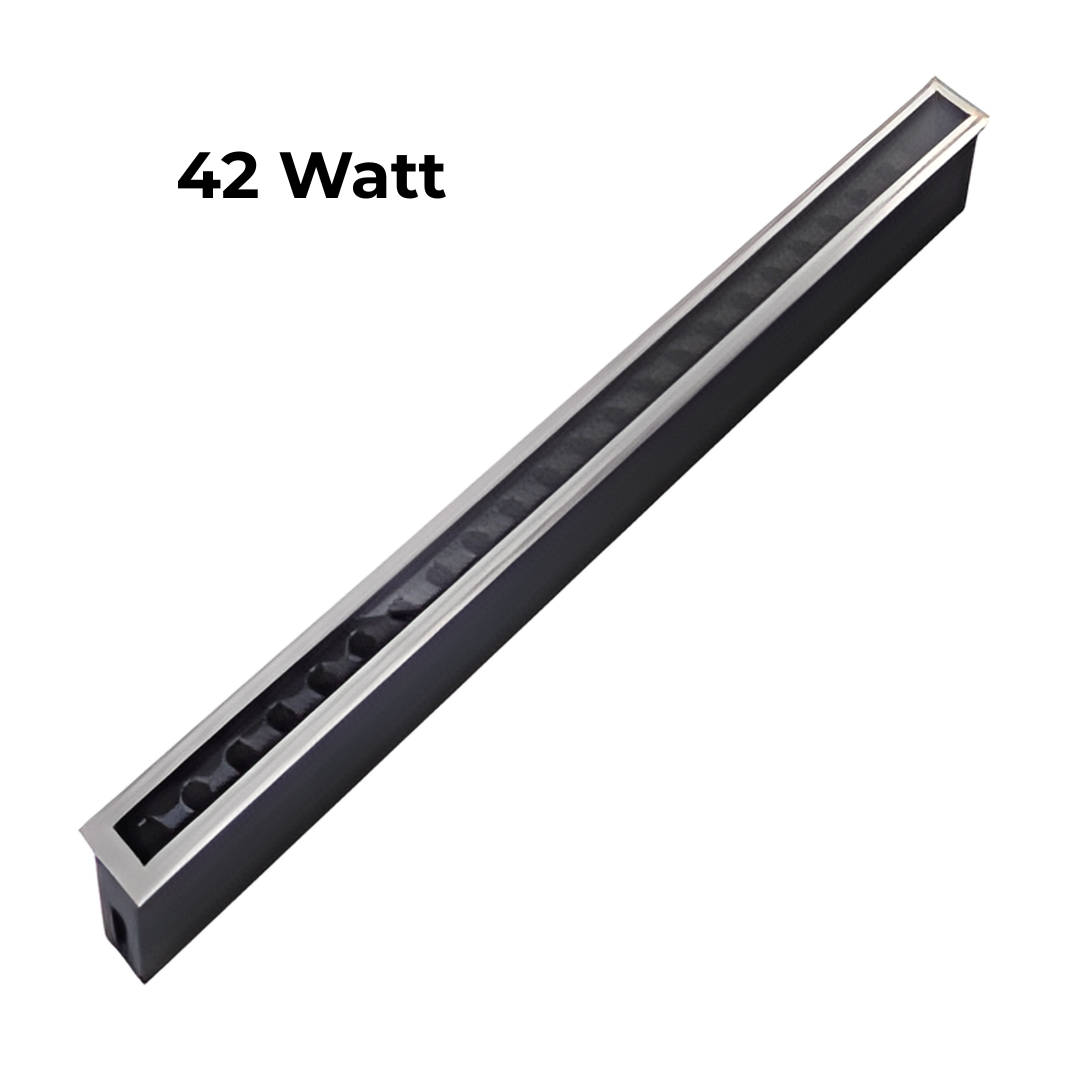

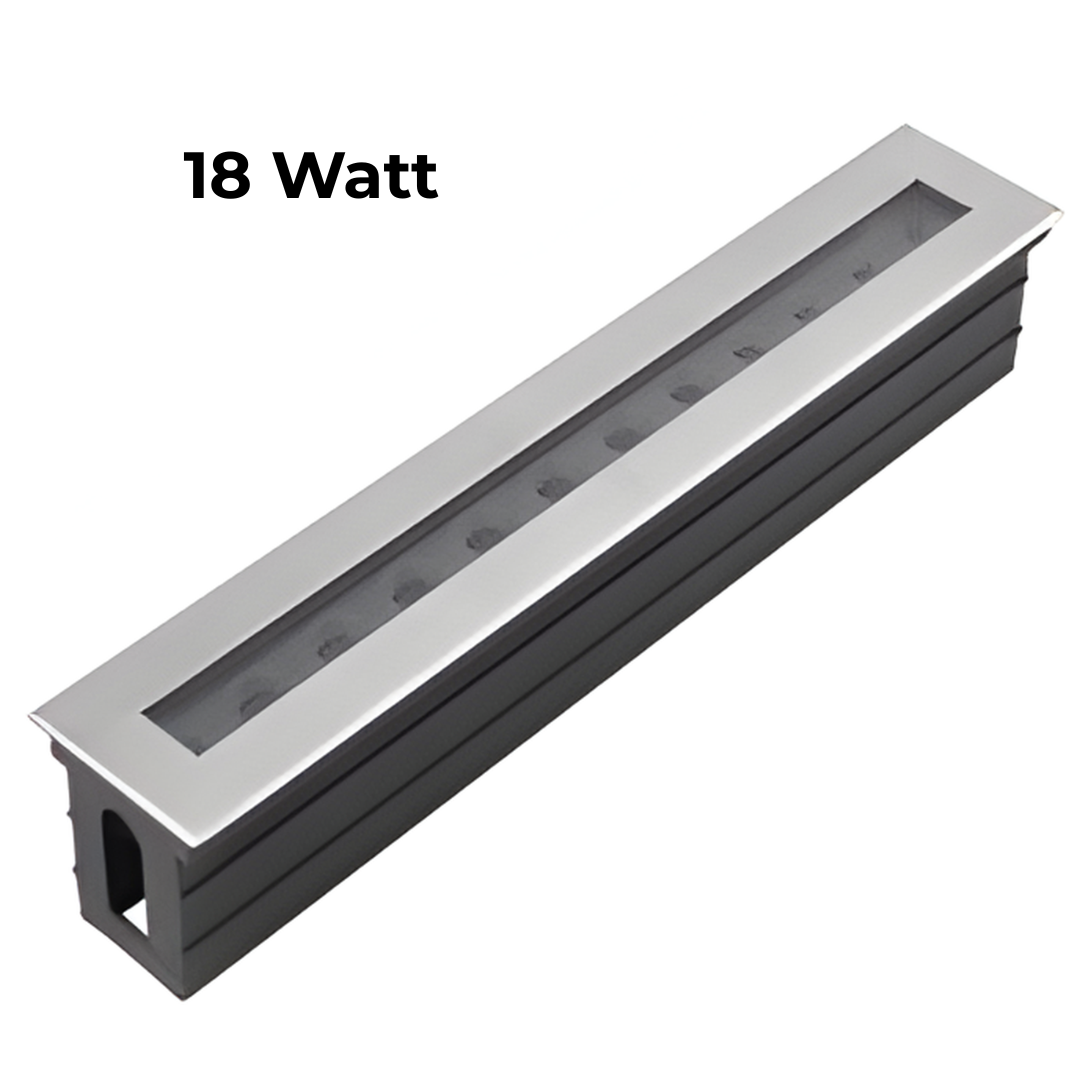

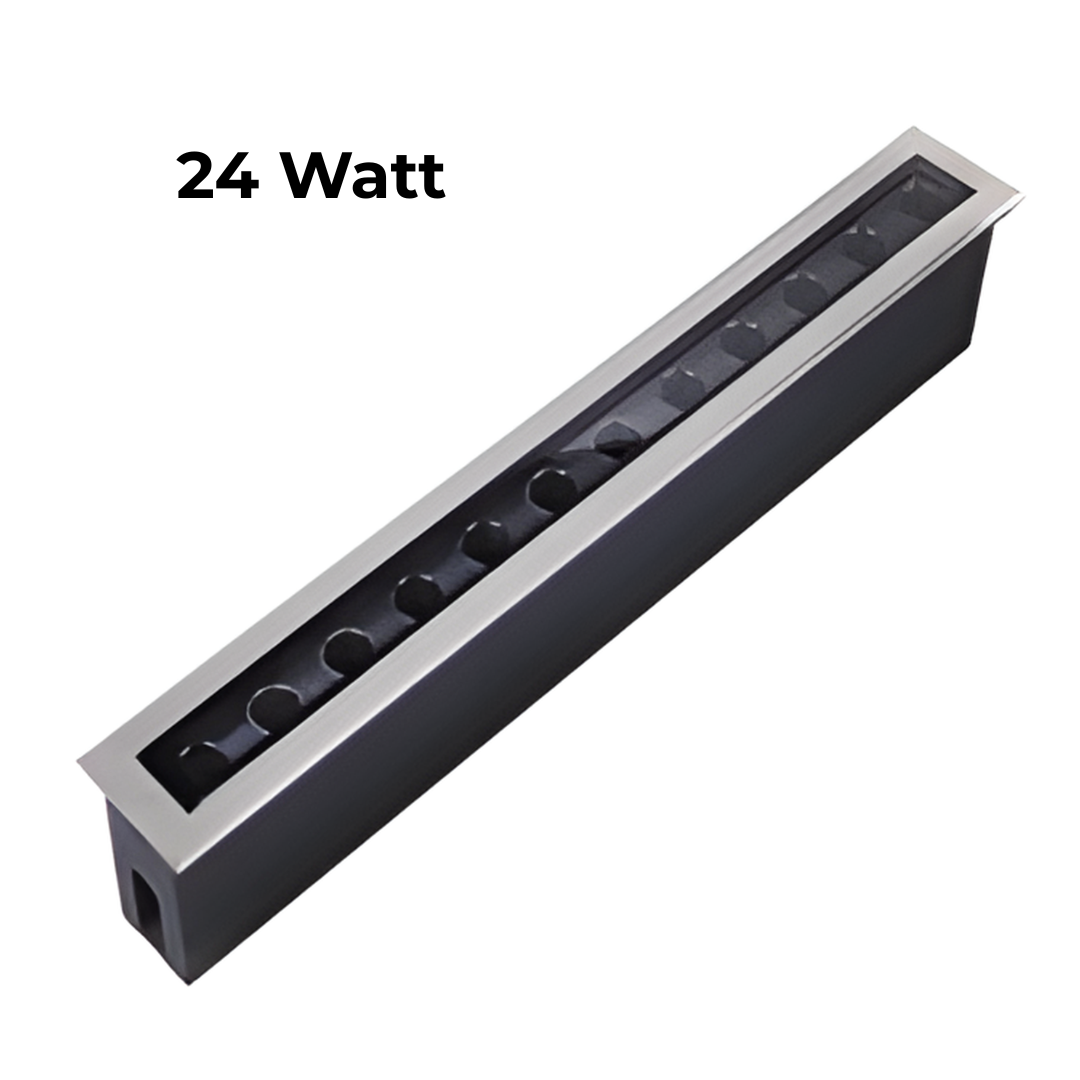

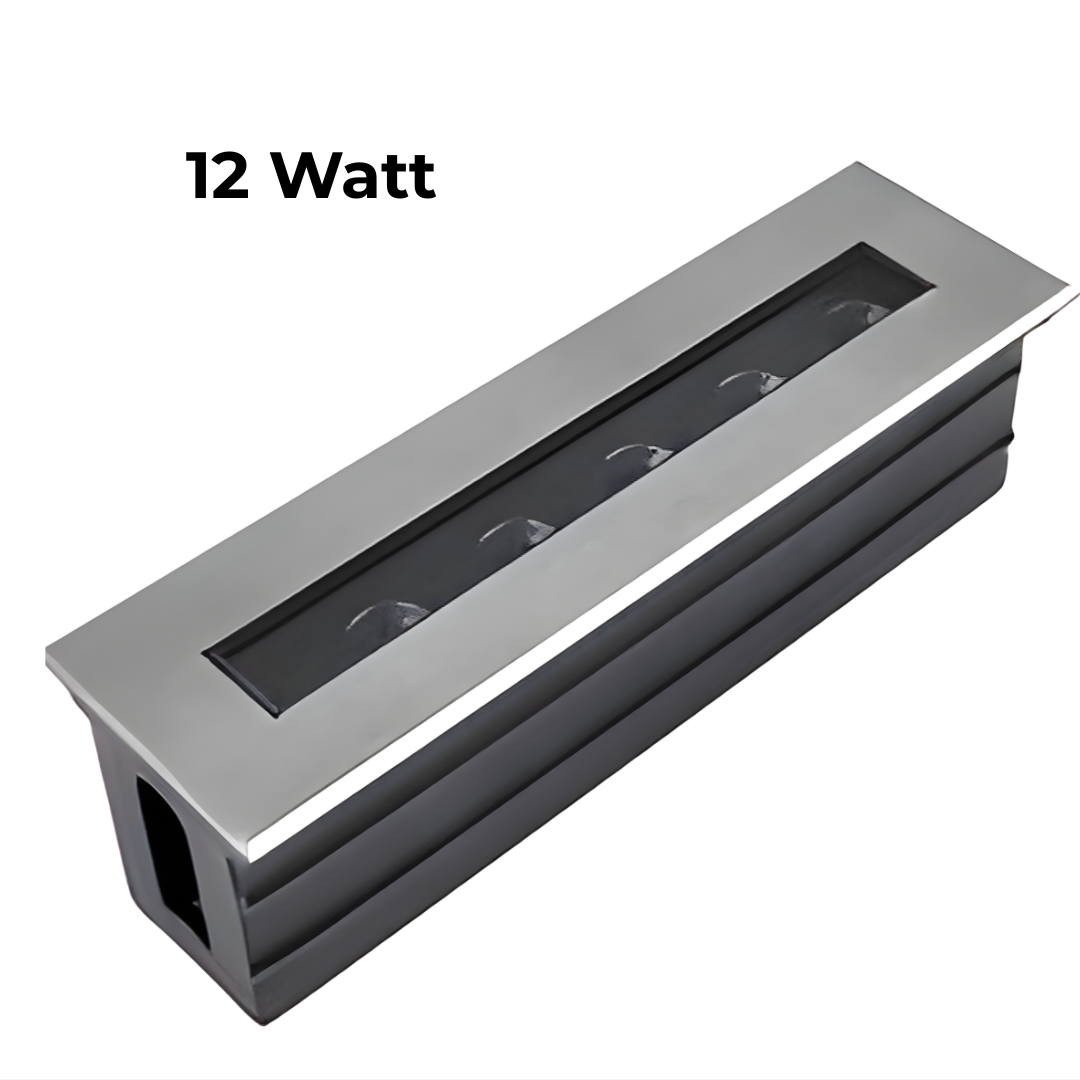

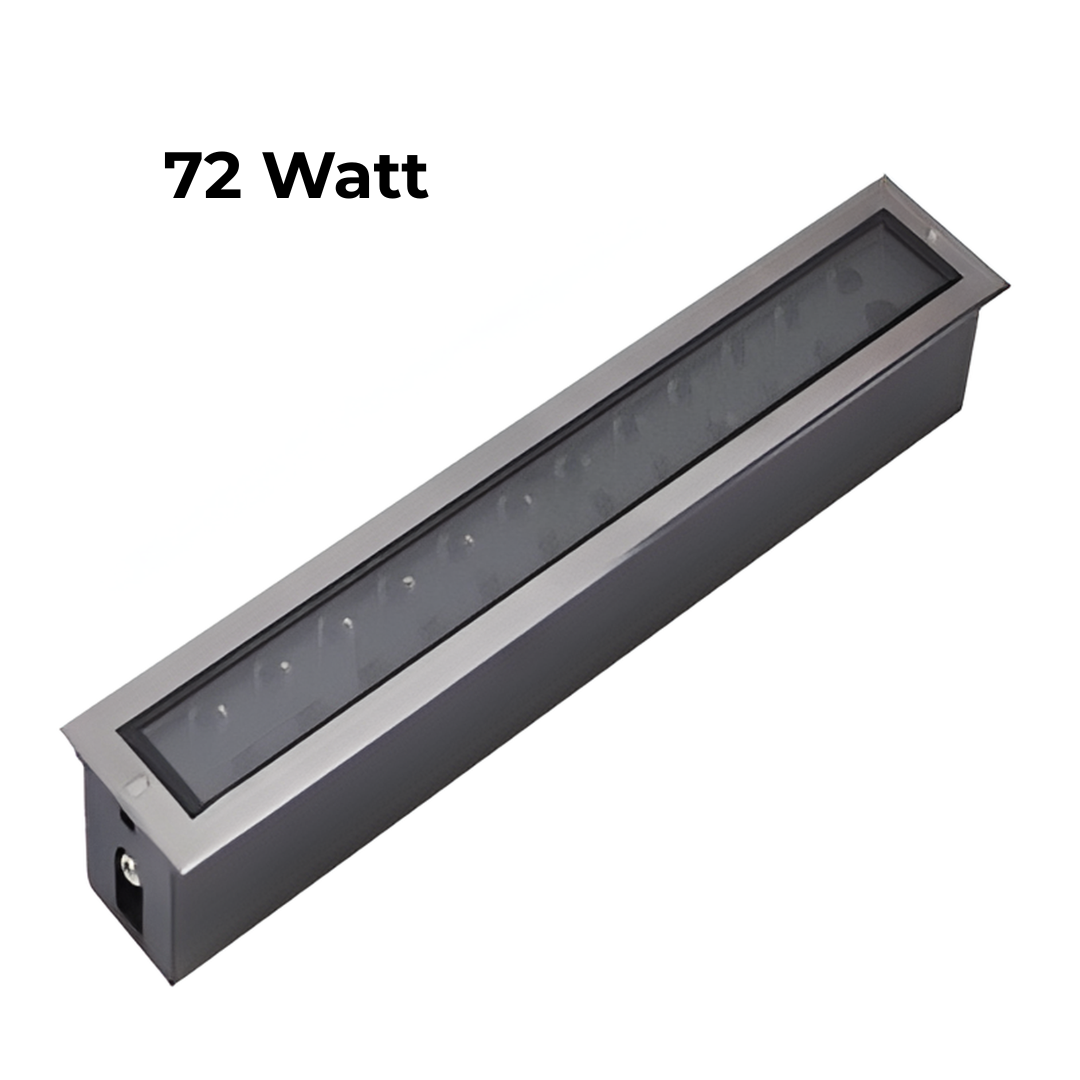

Product gallery
Features & benefits
.png)
Category
Linear Wash Light (Inground)
Light Source
High Efficiency LED
Diffuser Material
Toughened Glass
Housing Material
Die-Cast Aluminium
Operating Mode
Built-in Driver
Control
ON / OFF (Optional DMX for RGB / RGBW / RGBWW)
Ingress Protection
IP67
Mounting Type
Recessed
Mounting Location
Inground
Application Environment
Outdoor
Performance overview
| Power range | Beam angle (°) | Effective throw |
|---|---|---|
| 9-12W | 30°-45° | 8-12 ft / 6-10 ft |
| 12-15W | 25°-30° | 12-18 ft / 10-15 ft |
| 18-24W | 15°-25°-30° | 20-30 ft / 18-25 ft / 15-22 ft |
| 30-72W | 15°-25° | 30-60 ft / 25-50 ft |
Technical data
| Model | Power | Length | Voltage | CCT / colour | IP | Mounting |
|---|---|---|---|---|---|---|
| RIL-102-9-12 | 9-12 W | 300 mm | 24V DC | 1800K-6500K / RGB / RGBW / RGBWW | IP67 | Concealed |
| RIL-102-12-15 | 12-15 W | 500 mm | 24V DC | 1800K-6500K / RGB / RGBW / RGBWW | IP67 | Concealed |
| RIL-102-18-24 | 18-24 W | 600 mm | 24V DC | 1800K-6500K / RGB / RGBW / RGBWW | IP67 | Concealed |
| RIL-102-30-42 | 30-42 W | 1000 mm | 24V DC | 1800K-6500K / RGB / RGBW / RGBWW | IP67 | Concealed |
| RIL-102-45-72 | 45-72 W | 1200 mm | 24V DC | 1800K-6500K / RGB / RGBW / RGBWW | IP67 | Concealed |
